Grafana Plugin

The Nexalis Grafana plugin turns your Nexalis Cloud endpoint into a Grafana data source. You build queries by picking a site, an asset type and a measurement from dropdowns — the plugin writes the WarpScript for you, converts the result into Grafana time series, and labels the axis with the engineering units from the Nexalis data model. It is a backend plugin: Grafana’s own server calls the real-time API at {endpoint}/api/v0/exec. Your READ token is stored encrypted by Grafana and never reaches the browser.

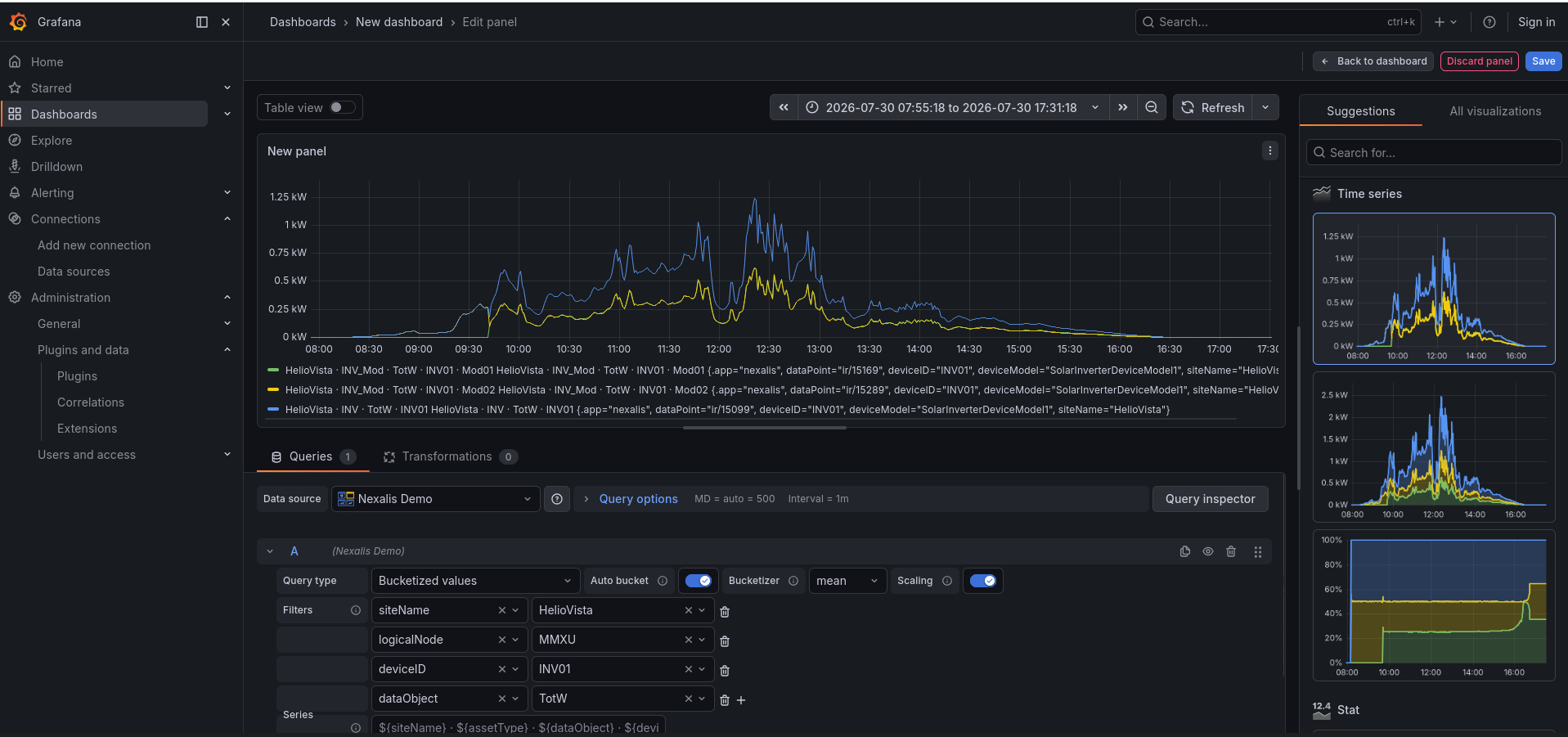

The Grafana panel editor showing a Nexalis query: a day of inverter AC power plotted in kW, with the query built from siteName, logicalNode, deviceID and dataObject filter rows, Auto bucket and Scaling switched on, and a series-name template driving the legend

Everything in that panel came from the four filter rows at the bottom. Three things worth noticing, because none of them are panel settings you have to configure:

The y-axis reads kW. The unit comes from the engUnits attribute in the Nexalis data model, applied to the field automatically.
The legend names itself from the series-name template — site, asset type, measurement, device and sub-device, with any part a series does not have dropped.
Auto bucket resolved to the 1-minute step Grafana asked for, shown as Interval = 1m under Query options. Widen the time range and the bucket widens with it, so the amount of data crossing the wire stays roughly constant.

The Grafana plugin is currently a preview (beta) release. Query options and the saved query format may still change between builds, so a dashboard built now may need small adjustments after an upgrade. Please send feedback and issues to contact@nexalis.io.

What you get

A point-and-click query editor — no WarpScript knowledge required
Filter dropdowns populated from your own tenant, each one narrowed by the filters you already picked
The Nexalis macros (@nexalis/fetch_bucketized, @nexalis/fetch_trapezoidal_averages, @nexalis/scale) exposed as query types
Dashboard variables driven by your real site and device lists
A raw WarpScript editor for anything the query builder does not cover

Requirements

Grafana 12.3 or newer, self-hosted (OSS or Enterprise)
Access to the Grafana server’s filesystem, and the ability to restart it
A Nexalis Cloud endpoint URL and a READ token
Outbound HTTPS from the Grafana server to your endpoint

The release contains backends for Linux, macOS and Windows, on both amd64 and arm64, so one download works everywhere.

Grafana Cloud is not supported yet. Grafana Cloud only runs plugins signed and published in the Grafana catalog, and this plugin is not yet signed. Use a self-hosted Grafana for now.

Installation

Whichever way you run Grafana, the shape is the same: put the plugin folder where Grafana looks for plugins, tell Grafana to trust it because it is not signed yet, and restart. Only the mechanics differ, so pick the track that matches your setup:

Grafana as a system package — installed with apt or yum, managed by systemd
Grafana in Docker — docker run or Docker Compose

Step 1: Find the latest version (both tracks)

Open the releases repository and note the version number of the newest release — the tag looks like v1.1.0, and the download is nexalis-nexalis-datasource-1.1.0.zip. Each release also publishes a .zip.sha1 file if you want to verify the download:

sha1sum -c nexalis-nexalis-datasource-1.1.0.zip.sha1

Whatever you do, keep the nexalis-nexalis-datasource/ folder name from the zip. Grafana identifies a plugin by the plugin.json inside its own folder — renaming or flattening the folder stops it loading.

Track A: Grafana installed as a package

A1. Unzip into the plugins directory

The default is /var/lib/grafana/plugins. To confirm the path your server actually uses, ask Grafana — it logs every path at startup:

journalctl -u grafana-server | grep "Path Plugins"

On a fresh Grafana this directory does not exist yet. Grafana creates /var/lib/grafana for its database, but plugins/ only appears once a plugin has been installed, so cd /var/lib/grafana/plugins fails with “No such file or directory”. The mkdir -p below handles that.

VERSION=1.1.0                      # the version from Step 1, without the leading "v"
PLUGINS=/var/lib/grafana/plugins

sudo mkdir -p "$PLUGINS"
curl -sSL -o /tmp/nexalis-plugin.zip \
  "https://github.com/Nexalis-Organization/nexalis-grafana-plugin-releases/releases/download/v$VERSION/nexalis-nexalis-datasource-$VERSION.zip"
sudo unzip -q /tmp/nexalis-plugin.zip -d "$PLUGINS"
rm /tmp/nexalis-plugin.zip
sudo chown -R grafana:grafana "$PLUGINS/nexalis-nexalis-datasource"

The download goes to /tmp as your own user, and only the unzip needs sudo — the plugins directory is owned by root. The final chown matters: Grafana runs as the grafana user and silently skips a plugin directory it cannot read. You should end up with a nexalis-nexalis-datasource/ folder containing plugin.json, module.js and several gpx_nexalis_datasource_* backend binaries.

A2. Allow the plugin to load

The plugin is not signed yet, so add its ID to grafana.ini:

[plugins]
allow_loading_unsigned_plugins = nexalis-nexalis-datasource

If you already allow other unsigned plugins, add this ID to the existing comma-separated list rather than replacing it.

A3. Restart Grafana

sudo systemctl restart grafana-server

Grafana reads plugin.json only at startup, so a restart is required — after this install and after every upgrade. Now jump to Confirm Grafana found it.

Updating (package)

Replace the folder with the newer release and restart:

VERSION=1.2.0                      # the version you are moving to
PLUGINS=/var/lib/grafana/plugins

curl -sSL -o /tmp/nexalis-plugin.zip \
  "https://github.com/Nexalis-Organization/nexalis-grafana-plugin-releases/releases/download/v$VERSION/nexalis-nexalis-datasource-$VERSION.zip"
sudo rm -rf "$PLUGINS/nexalis-nexalis-datasource"
sudo unzip -q /tmp/nexalis-plugin.zip -d "$PLUGINS"
rm /tmp/nexalis-plugin.zip
sudo chown -R grafana:grafana "$PLUGINS/nexalis-nexalis-datasource"
sudo systemctl restart grafana-server

Deleting the old folder rather than unzipping over it matters — it clears out files a newer release no longer ships. Your data sources and dashboards live in Grafana’s own database, so they survive the upgrade untouched, and grafana.ini does not need changing again.

Removing (package)

sudo rm -rf /var/lib/grafana/plugins/nexalis-nexalis-datasource
sudo systemctl restart grafana-server

Then drop the ID from allow_loading_unsigned_plugins.

Track B: Grafana in Docker

Nothing is installed inside the container. You unpack the plugin on the host and mount that one folder in, which means an upgrade is a host-side file swap plus a container restart.

B1. Unpack the plugin on the host

Pick a directory you control — this example uses ./grafana-plugins next to your docker-compose.yml:

VERSION=1.1.0                      # the version from Step 1, without the leading "v"

mkdir -p ./grafana-plugins
curl -sSL -o /tmp/nexalis-plugin.zip \
  "https://github.com/Nexalis-Organization/nexalis-grafana-plugin-releases/releases/download/v$VERSION/nexalis-nexalis-datasource-$VERSION.zip"
unzip -q /tmp/nexalis-plugin.zip -d ./grafana-plugins
rm /tmp/nexalis-plugin.zip
chmod -R a+rX ./grafana-plugins/nexalis-nexalis-datasource
chmod +x ./grafana-plugins/nexalis-nexalis-datasource/gpx_*

The official grafana/grafana image runs as UID 472, not root, and host file ownership is not translated into the container. If the plugin folder is not readable by that UID, Grafana skips it with no visible error. chmod -R a+rX is the simplest fix; sudo chown -R 472:472 also works. The chmod +x matters too — a backend plugin whose binary is not executable fails to start.

B2. Mount it and allow it

services:
  grafana:
    image: grafana/grafana:12.3.0        # or newer; 12.3 is the minimum
    ports:
      - "3000:3000"
    environment:
      GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS: nexalis-nexalis-datasource
    volumes:
      - ./grafana-plugins/nexalis-nexalis-datasource:/var/lib/grafana/plugins/nexalis-nexalis-datasource
      - grafana-data:/var/lib/grafana

volumes:
  grafana-data:

GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS is the environment-variable form of the grafana.ini setting — in Docker you never edit the file. Two details worth getting right:

Mount the plugin’s own folder, not the whole plugins directory. Mounting the parent would hide any other plugin the image ships with.
Give /var/lib/grafana a named volume. Without it, your data sources and dashboards are inside the container’s writable layer and disappear the moment you recreate it — which is exactly what an upgrade does.

The equivalent as a one-off docker run, useful for a quick trial:

docker run --rm -p 3000:3000 -e GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS=nexalis-nexalis-datasource -v "$PWD/grafana-plugins/nexalis-nexalis-datasource:/var/lib/grafana/plugins/nexalis-nexalis-datasource" grafana/grafana:12.3.0

B3. Start it

docker compose up -d

Then jump to Confirm Grafana found it. If the data source is missing, the container log usually says why:

docker compose logs grafana | grep -i nexalis

Updating (Docker)

Replace the folder on the host, then restart the container. Grafana reads plugin.json only at startup, so the restart is what actually applies the new version:

VERSION=1.2.0                      # the version you are moving to

curl -sSL -o /tmp/nexalis-plugin.zip \
  "https://github.com/Nexalis-Organization/nexalis-grafana-plugin-releases/releases/download/v$VERSION/nexalis-nexalis-datasource-$VERSION.zip"
rm -rf ./grafana-plugins/nexalis-nexalis-datasource
unzip -q /tmp/nexalis-plugin.zip -d ./grafana-plugins
rm /tmp/nexalis-plugin.zip
chmod -R a+rX ./grafana-plugins/nexalis-nexalis-datasource
chmod +x ./grafana-plugins/nexalis-nexalis-datasource/gpx_*
docker compose restart grafana

The compose file does not change, and neither do your data sources and dashboards as long as /var/lib/grafana is on a named volume.

Removing (Docker)

Delete the volumes: line for the plugin from your compose file, then:

docker compose up -d --force-recreate grafana
rm -rf ./grafana-plugins/nexalis-nexalis-datasource

Confirm Grafana found it

In Grafana, go to Connections → Data sources → Add new data source and search for Nexalis. If it appears, the plugin is loaded — continue to Connecting to Nexalis Cloud. To check the version that is actually running, open Administration → Plugins and search for Nexalis. If it does not appear at all, see The Nexalis data source does not appear.

Connecting to Nexalis Cloud

Go to Connections → Data sources → Add new data source and choose Nexalis. There are only two fields to fill in:

Field	Value
Nexalis URL	Your endpoint, for example `https://yourcompany.app.nexalis.io`
READ token	Your Nexalis READ token

Then click Save & test. A working configuration reports how many time series the token can see:

Connected — 48213 time series visible with this token

That number is your whole tenant, counted by the API itself — it is a quick confirmation that both the endpoint and the token are right.

Use a READ token. The plugin only ever queries data and never writes to your Nexalis instance.The token is stored in Grafana’s encrypted secrets store. Once saved it is write-only: the field shows configured and you can replace it, but neither the browser nor a dashboard viewer can read it back.

The Nexalis URL field accepts either the base URL (https://yourcompany.app.nexalis.io) or the full exec URL (https://yourcompany.app.nexalis.io/api/v0/exec) — the plugin normalises it either way.

Provisioning instead of clicking

To create the data source from configuration, drop a file in Grafana’s provisioning/datasources/ directory:

apiVersion: 1
datasources:
  - name: Nexalis
    type: nexalis-nexalis-datasource
    access: proxy
    isDefault: true
    jsonData:
      nexalisUrl: https://yourcompany.app.nexalis.io
    secureJsonData:
      token: $NEXALIS_READ_TOKEN

Set NEXALIS_READ_TOKEN in the Grafana server’s environment so the token is not committed to your configuration repository.

Your first panel

This builds a chart of inverter AC power for one site, from an empty dashboard.

Go to Dashboards → New → New dashboard, then click + Add visualization
Choose your Nexalis data source The query editor opens with Query type set to Bucketized values and one empty filter row keyed on siteName.
Click the value box on that first filter row The dropdown lists the real site names in your tenant. Pick one.
Click the + button at the end of the row to add a second filter. Set the key to assetType and the value to INV
Add a third filter: key dataObject, value TotW
Set the dashboard time range in the top right to Last 6 hours
Click the refresh button

You should now see one line per inverter, each named from its site, asset type, measurement and device, with the y-axis already in kW — the plugin reads engUnits from the Nexalis data model and applies it to the panel. The screenshot at the top of this page shows the same thing, narrowed further with logicalNode and deviceID filters as well. Click Save to keep the dashboard.

A filter with an empty value matches nothing, which is why a brand-new panel shows no data until you fill in that first value. If a panel goes empty after an edit, check that every filter row you have added has a value.

Grafana’s Explore page (in the left-hand menu) has the same query editor without the dashboard around it. It is the quickest way to try filters out, or to check that a tag has recent data, before committing to a panel.

The query editor

Query types

Query type	What it runs	Use it for
Bucketized values	`@nexalis/fetch_bucketized`	The default. Resamples into fixed buckets using `mean`, `last`, `first`, `max` or `min`. Best for dashboards.
Trapezoidal averages	`@nexalis/fetch_trapezoidal_averages`	Time-weighted averages per bucket. The accurate choice when data is sampled irregularly.
Raw values (scaled)	`FETCH` + `@nexalis/scale`	Every recorded point. Use on short time ranges only.
Discover (FIND)	`FIND`	Lists the distinct values of one label or attribute. Drives dashboard variables.
Raw WarpScript	your script	Anything the builder does not cover.

Bucketized and trapezoidal are the two you will use most. Both aggregate server-side, so the amount of data crossing the wire stays roughly constant however long a time range you pick.

Filters

Filters are the heart of a query. Each row is one key and one value, and all rows are combined — a query matches series that satisfy every row. Nexalis stores two kinds of metadata on a time series, labels and attributes, and both are filterable here in exactly the same way:

Key	Kind	Example
`siteName`	label	`TX_001`
`deviceID`	label	`01234`
`deviceModel`	label	`Satcon`
`dataPoint`	label	`42`, or an OPC UA path such as `ns=2;s=[PLANT1]/PV/BLK-06/INV-06/VAL_P_KW`
`assetType`	attribute	`INV`, `Meter`, `MeteoSta`
`subDeviceID`	attribute	`BLK_001_23`
`logicalNode`	attribute	`MMXU`, `MMDC`
`dataObject`	attribute	`TotW`, `PhV`
`subDataObject`	attribute	`phsA`
`measurementType`	attribute	`Analog`, `Discrete`

See Data Structure for what each one means. Both the key and the value dropdowns are populated from your tenant, and the value list is narrowed by the filters you have already set — pick siteName first and the assetType dropdown then offers only the asset types that exist at that site. Building a query top to bottom keeps every choice valid. You can also type instead of picking:

A Warp10 regular expression, prefixed with ~ — ~INV-(1|2), ~^TX_, ~.*_001$. See Filtering Data.
A dashboard variable — $site. See Dashboard variables below.

If a value list is longer than the plugin will show at once, it tells you so in the dropdown; type to search, or add another filter to narrow it.

Bucket size

Auto bucket is on for new queries. The bucket width then follows the panel’s time range and width the way Grafana’s $__interval does, snapping to a fixed ladder — 1, 2, 5, 10, 15, 30, 60, 120, 180, 360, 720 or 1440 minutes — so buckets do not shift around as you resize a panel. Turn Auto bucket off to pin a width in minutes, which is what you want when a number has to mean something specific: 15-minute averages for a settlement report, say, regardless of how the panel is displayed.

Bucketizer

For Bucketized values, the Bucketizer field decides how the points inside each bucket are reduced to one value:

Bucketizer	Result
`mean`	Arithmetic average of the points in the bucket. The default.
`last`	The most recent point in the bucket — best for counters, states and totalisers
`first`	The earliest point in the bucket
`max` / `min`	The extreme value in the bucket — for peaks and dips a mean would hide

If what you actually need is a time-weighted average — the true average of the signal over the bucket, rather than of the samples — use the Trapezoidal averages query type instead. On irregularly-sampled tags the two give different answers, and the trapezoidal one is the correct one.

Scaling

Scaling is on by default and applies @nexalis/scale, which converts each raw SCADA value into the engineering units of the Nexalis data model using the multiplier and adder attributes — watts to kilowatts, for instance. Leave it on unless you specifically want the raw stored values.

Scaling is not idempotent. If you write a Raw WarpScript query, call @nexalis/scale exactly once — @nexalis/fetch_bucketized and @nexalis/fetch_trapezoidal_averages already apply it for you.

Series name

Series name controls the legend. It is a template with ${...} placeholders, and any label or attribute can be used:

${siteName} · ${assetType} · ${dataObject} · ${deviceID} · ${subDeviceID}

That is the default. Placeholders that a series does not have are dropped, along with the separator around them, so you never get a legend full of gaps. Shorten it to just what distinguishes your series — with one site and one measurement on a panel, ${subDeviceID} alone is usually the readable choice.

Dashboard variables

A variable turns a hard-coded filter into a dropdown at the top of the dashboard.

Open Dashboard settings → Variables → Add variable
Set Select variable type to Query and give it a name, for example site
Choose your Nexalis data source
Set Query type to Discover (FIND)
Set Return values of to siteName
Check the preview at the bottom of the page — it lists your actual site names
Apply, then use it in any panel by typing $site as a filter value

The same works for any key: point Return values of at assetType, deviceID or dataObject to build those dropdowns. Add filters to the variable query to make one variable depend on another — give the deviceID variable a filter of siteName = $site, and it will only ever list devices at the selected site.

Multi-value and “All” work. The plugin translates a multiple selection into a Warp10 regular expression (~^(TX_001|TX_002)$), because Warp10 has no list syntax of its own. You do not have to do anything — write $site as the filter value and select as many as you like.

Raw WarpScript

Choose Raw WarpScript as the query type to write the script yourself. The filter builder is hidden — your script defines its own selectors. The plugin injects your saved token and the panel’s time range, so a script can be moved between dashboards and time ranges unchanged:

Variable	Contents
`$token`	The configured READ token
`$start` / `$end`	The panel’s time range, in microseconds
`$startISO` / `$endISO`	The same range as ISO 8601 strings
`$interval`	The step Grafana asked for, in microseconds
`$span`	`end` − `start`, in microseconds

{
  'token' $token
  'class' 'nx.value'
  'labels' { 'siteName' 'TX_001' 'dataObject' 'TotW' }
  'start' $startISO
  'end' $endISO
} FETCH
@nexalis/scale

Leave Geo Time Series on the stack and the plugin turns them into panel series, exactly as it does for the built-in query types. Anything the real-time API accepts works here, including your own macros.

Query performance

Nexalis is a time-series database: it is fast at reading one tag over a long period, and slow at reading many tags at once. The best practices apply directly to how you build panels.

Filter as narrowly as you can. Every filter you add cuts the number of series the API has to scan. Always set siteName; add deviceID or dataPoint when you know them.
One chart, one question. A panel filtered only by siteName and assetType can match thousands of series. When a query returns more than 500, the panel shows a warning explaining that this is why it is slow — treat it as a prompt to add a filter, not as an error.
Prefer the aggregating query types. Bucketized and trapezoidal aggregate server-side. Raw values (scaled) returns every recorded point, which on a high-frequency tag over a week is an enormous amount of data.
Mind the dashboard refresh rate. Every panel is a separate API call. A dashboard of twenty panels refreshing every ten seconds is 120 calls a minute, which can hit your rate limit.

Troubleshooting

The Nexalis data source does not appear

Grafana logs a reason at startup. Check it first — it usually names the problem outright:

journalctl -u grafana-server | grep -i plugin     # package install
docker compose logs grafana | grep -i plugin      # Docker

Then work through:

Was Grafana restarted after the plugin was unzipped? plugin.json is read only at startup.
Is the folder in the right place, and still named nexalis-nexalis-datasource? The plugin.json must be at <plugins-dir>/nexalis-nexalis-datasource/plugin.json, not one level deeper. Unzipping a second time can produce a nested duplicate folder.
Is the plugin allowed? A signature error in the log means allow_loading_unsigned_plugins is missing the ID, or — in Docker — that GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS is missing or misspelled.
Are the backend binaries executable? A “failed to start plugin” error usually means the gpx_* files lost their executable bit. Run chmod +x <plugins-dir>/nexalis-nexalis-datasource/gpx_*.
Can Grafana read the folder? On a package install it must be readable by the grafana user. In Docker it must be readable by UID 472, which host ownership does not translate to — chmod -R a+rX on the host folder is the quick fix.
In Docker, is the mount actually there? Confirm what the container sees:
docker compose exec grafana ls -l /var/lib/grafana/plugins/nexalis-nexalis-datasource
An empty or missing directory means the volumes: path is wrong — it is resolved relative to the compose file, not to your shell.

”Save & test” fails

Message	What to do
`Nexalis URL is missing`	Fill in the endpoint, for example `https://yourcompany.app.nexalis.io`
`Nexalis READ token is missing`	Paste your token. After a Reset the field must be filled in again.
`the Nexalis READ token was rejected`	The token is wrong, or belongs to a different tenant than the URL. Check both together.
`the Nexalis READ token has expired`	Request a new READ token from contact@nexalis.io.
`cannot reach the Nexalis API`	The Grafana server cannot reach the endpoint. Check DNS, egress firewall rules, and any outbound proxy.
`Connected, but this token can see no time series`	The endpoint and token are valid, but the token grants no read access to this tenant’s data. Confirm it is a READ token issued for this endpoint.

A panel shows no data

Work from the widest query inwards:

Check the time range. A device that stopped reporting has no data in the last hour, however correct the filters are.
Remove filters one at a time. The one whose removal brings data back is the one that does not match. Values are case-sensitive and exact unless prefixed with ~.
Make sure no filter row has an empty value — an empty value matches nothing.
Switch Query type to Discover (FIND) with the same filters and set Return values of to dataPoint. If that returns nothing, no series matches your filters at all; if it returns series, the filters are fine and the issue is the time range or the query type.
If a variable is involved, confirm it has a selected value — an unset variable interpolates to nothing.

Other errors

too much data returned / response exceeded 50 MB. The query matched too many series or too long a range. Narrow the filters or shorten the time range. Switching from Raw values (scaled) to Bucketized values usually fixes it on its own. rate limited by Nexalis (HTTP 429). Too many calls in too short a window. Lower the dashboard refresh rate, or reduce the number of panels querying at once. query failed on Nexalis (HTTP 500). The catch-all for a WarpScript error. The rest of the message is Warp10’s own, naming the function that failed — most often a Raw WarpScript query with a typo, or a macro called with the wrong parameters. Common Errors lists the API-level causes. A boolean or text tag shows as a flat line at 0 and 1. That is expected: Discrete measurements such as alarm states and nexalisConnectionStatus are plotted as 1 for true and 0 for false. The State timeline visualisation reads better than a time series for these. Text-valued tags come through as text, best viewed in a Table. Gaps in a trapezoidal-average line. The macro returns no value for a bucket with no readings and no earlier value to interpolate from, which the plugin renders as a gap. This normally only happens at the very start of a series.

Learn more

Real-Time API — the API the plugin queries, its data structure and filtering rules
Nexalis Macros — what @nexalis/fetch_bucketized, @nexalis/fetch_trapezoidal_averages and @nexalis/scale do
Common Errors — API-level errors and their causes

For plugin access and support, contact contact@nexalis.io.

Overview

Nexalis Cloud

Nexalis Agent

Performance

Requirements

Installation

Step 1: Find the latest version (both tracks)

Track A: Grafana installed as a package

A1. Unzip into the plugins directory

A2. Allow the plugin to load

A3. Restart Grafana

Updating (package)

Removing (package)

Track B: Grafana in Docker

B1. Unpack the plugin on the host

B2. Mount it and allow it

B3. Start it

Updating (Docker)

Removing (Docker)

Confirm Grafana found it

Connecting to Nexalis Cloud

Provisioning instead of clicking

Your first panel

The query editor

Query types

Filters

Bucket size

Bucketizer

Scaling

Series name

Dashboard variables

Raw WarpScript

Query performance

Troubleshooting

The Nexalis data source does not appear

”Save & test” fails

A panel shows no data

Other errors

Learn more

​Requirements

​Installation

​Step 1: Find the latest version (both tracks)

​Track A: Grafana installed as a package

​A1. Unzip into the plugins directory

​A2. Allow the plugin to load

​A3. Restart Grafana

​Updating (package)

​Removing (package)

​Track B: Grafana in Docker

​B1. Unpack the plugin on the host

​B2. Mount it and allow it

​B3. Start it

​Updating (Docker)

​Removing (Docker)

​Confirm Grafana found it

​Connecting to Nexalis Cloud

​Provisioning instead of clicking

​Your first panel

​The query editor

​Query types

​Filters

​Bucket size

​Bucketizer

​Scaling

​Series name

​Dashboard variables

​Raw WarpScript

​Query performance

​Troubleshooting

​The Nexalis data source does not appear

​”Save & test” fails

​A panel shows no data

​Other errors

​Learn more

Requirements

Installation

Step 1: Find the latest version (both tracks)

Track A: Grafana installed as a package

A1. Unzip into the plugins directory

A2. Allow the plugin to load

A3. Restart Grafana

Updating (package)

Removing (package)

Track B: Grafana in Docker

B1. Unpack the plugin on the host

B2. Mount it and allow it

B3. Start it

Updating (Docker)

Removing (Docker)

Confirm Grafana found it

Connecting to Nexalis Cloud

Provisioning instead of clicking

Your first panel

The query editor

Query types

Filters

Bucket size

Bucketizer

Scaling

Series name

Dashboard variables

Raw WarpScript

Query performance

Troubleshooting

The Nexalis data source does not appear

”Save & test” fails

A panel shows no data

Other errors

Learn more
